Choosing a heavy-duty truck for Ontario's highways or Toronto's construction sites requires matching precise capabilities to your job requirements. The 2026 GMC Sierra HD lineup delivers that precision, offering contractors and commercial operators a choice between the 2500 HD and 3500 HD models, each engineered to handle distinct workload demands.
For 2026, GMC has refined its Heavy Duty lineup with targeted updates that enhance both capability and convenience. The MultiPro Tailgate, previously reserved for higher trims, now extends to SLT configurations, while the off-road-focused AT4 and AT4X variants bring serious capability to job sites beyond the pavement. Understanding the differences between these models—and the powertrains that drive them—helps you make the right investment for hauling materials across Ontario or towing equipment trailers through Toronto.
Built for serious work and confident towing, the GMC Sierra 2500 HD delivers strength, durability, and advanced capability.
Shop Sierra 2500 HD >The fundamental distinction between the Sierra 2500 HD and 3500 HD lies in their structural engineering and intended workload capacity. Both share the same cab configurations and wheelbase options, but the 3500 HD offers dual rear wheel (DRW) configurations for maximum stability under extreme loads. The 2500 HD with Max Towing Package and all 3500 HD models use a three-stage rear leaf spring suspension, while the base 2500 HD employs a two-stage system.
Cab and Bed Configurations
Both models offer three cab styles to match crew size and cargo needs:
The 3500 HD extends configuration flexibility with single rear wheel (SRW) and dual rear wheel options across all cab styles, allowing operators to prioritize either payload capacity or manoeuvrability based on job requirements.
Wheelbase and Dimensions
Wheelbase options range from 3,595 mm (141.55 in) on Regular Cab Long Bed configurations to 4,369 mm (172 in) on Crew Cab Long Bed models. Overall length varies from 6,002 mm (236.6 in) to 6,776 mm (266.77 in), with the 3500 HD DRW measuring 2,457 mm (96.75 in) wide compared to 2,076–2,079 mm (81.75–81.85 in) for SRW configurations.
Ground clearance reflects each model's capability focus: the 2500 HD provides 259 mm (10.2 in), while the 3500 HD SRW offers 285 mm (11.22 in) and the DRW variant delivers 266 mm (10.47 in).
The 2026 model year brings focused refinements that enhance both functionality and visual appeal. Two new exterior colours join the palette—Glacier White Tricoat and Coastal Dune—offering contractors additional options for fleet coordination or personal preference.
The most significant functional update centres on the MultiPro Tailgate, which now becomes available on SLT trim levels. This six-function tailgate system transforms the traditional single-panel design into a versatile work platform, offering configurations that include an inner gate that folds down to create a step, a standing workstation, and load-stop positioning for longer cargo items.
For operators requiring off-road capability, the AT4 and AT4X configurations continue to deliver purpose-built features. The AT4 combines off-road suspension with Rancho twin-tube shocks, while the AT4X elevates capability with a 1.5-inch factory lift, Multimatic DSSV dampers, and 35-inch Goodyear Territory mud-terrain tires. The AT4X AEV Edition package adds stamped-steel bumpers, AEV Salta wheels, and additional skid plates for maximum protection in challenging terrain.
Powertrain selection fundamentally shapes how a Sierra HD performs under load, influences operating costs, and determines long-term capability. The 2026 lineup offers two distinct engines, each engineered for specific duty cycles and operator preferences.
The standard 6.6L V8 gasoline engine delivers 401 hp and 464 lb-ft of torque, paired with a 3.73 rear axle ratio. This cast-iron block engine features:
This powertrain suits operators who prioritize lower upfront costs, simpler maintenance requirements, and flexibility in fuel availability. The gas engine excels in applications involving frequent starts and stops, shorter duty cycles, and operations that don't consistently require maximum towing capacity.
The available Duramax diesel produces 470 hp and 975 lb-ft of torque, matched to a 3.42 rear axle ratio. Key specifications include:
The substantial torque advantage—511 lb-ft more than the gas engine—translates directly to improved towing capacity and enhanced performance when hauling heavy loads. The diesel engine suits operations involving consistent heavy-duty cycles, maximum towing requirements, and applications in which fuel efficiency under load justifies the higher initial investment.
Both engines pair with the Allison 10L1000 10-speed automatic transmission, a commercial-grade unit engineered specifically for heavy-duty applications. Gear ratios span from 4.54:1 in first gear to 0.63:1 in tenth, providing optimal power delivery across the entire operating range while maintaining highway efficiency.
Maximum capability varies significantly based on cab style, bed length, drivetrain, and engine choice. Understanding these distinctions ensures you select a configuration that matches your heaviest anticipated loads without over-specifying—and overpaying—for capacity you won't use.
Conventional Towing (with Max Towing Package):

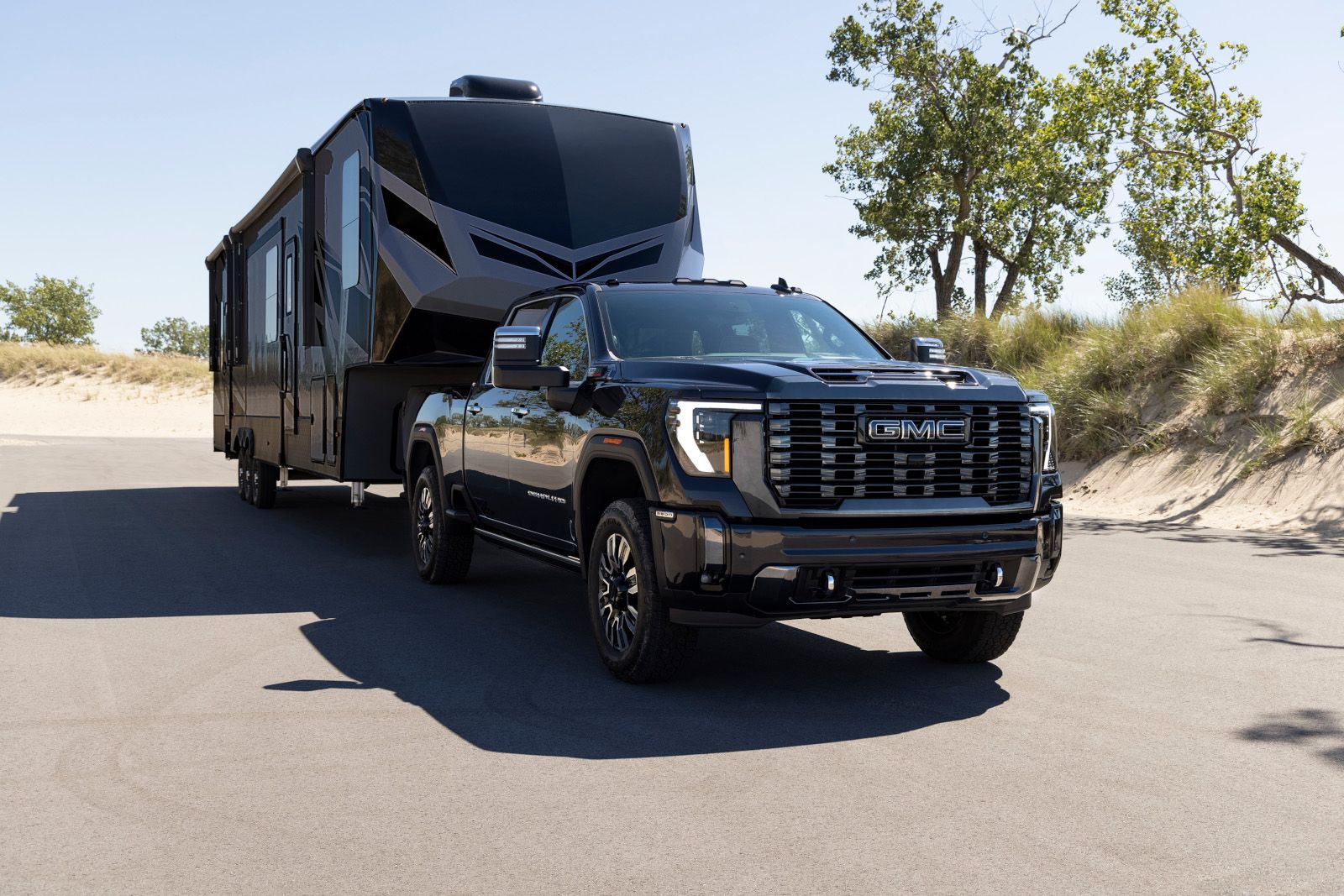

Fifth-Wheel/Gooseneck Towing (with Max Towing Package):
Maximum Payload:
Conventional Towing:
Fifth-Wheel/Gooseneck Towing (with Max Towing Package):
Maximum Payload:
The 3500 HD DRW configuration with diesel engine and Max Towing Package delivers fifth-wheel towing capacity that rivals commercial chassis-cab applications while maintaining pickup truck versatility.

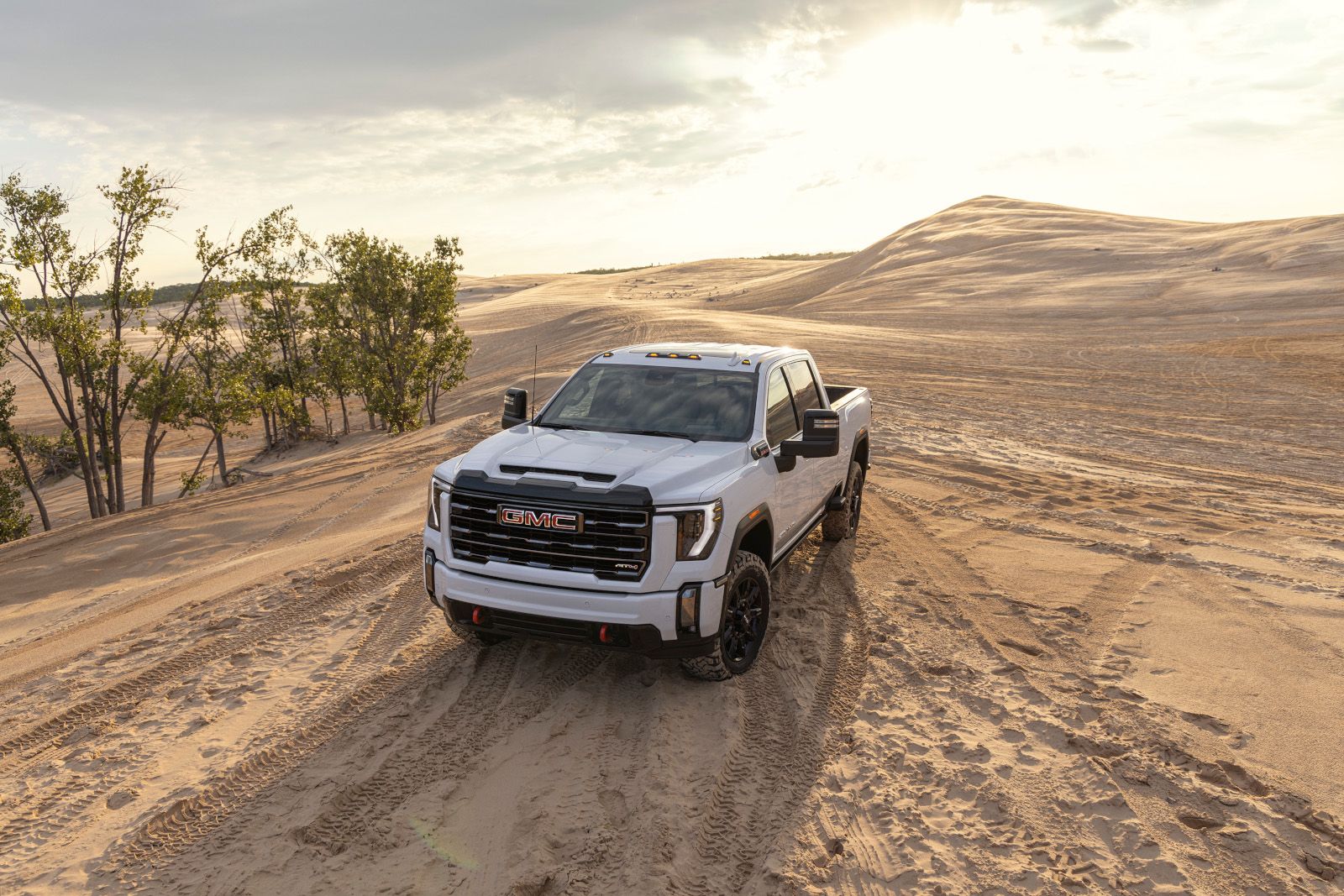

For contractors and operators whose job sites extend beyond paved roads, the AT4 and AT4X configurations deliver purpose-built capability without sacrificing heavy-duty fundamentals.
The AT4 trim combines off-road hardware with heavy-duty capability:
AT4 Capability:
The AT4X elevates off-road capability with premium components:
AT4X Capability:
The AT4X AEV Edition adds stamped-steel bumpers, additional skid plates, and AEV embroidery for operators requiring maximum protection in severe off-road conditions.
Heavy-duty work demands don't eliminate the need for comfort, connectivity, and safety. The 2026 Sierra HD balances professional-grade capability with modern amenities.
Regular Cab configurations provide seating for three, while Double Cab and Crew Cab models accommodate five passengers. AT4 and AT4X trims feature heated and ventilated front seats, with AT4X upgrading to 16-way power adjustment with massage function. All configurations include heated steering wheels (available or standard depending on trim).

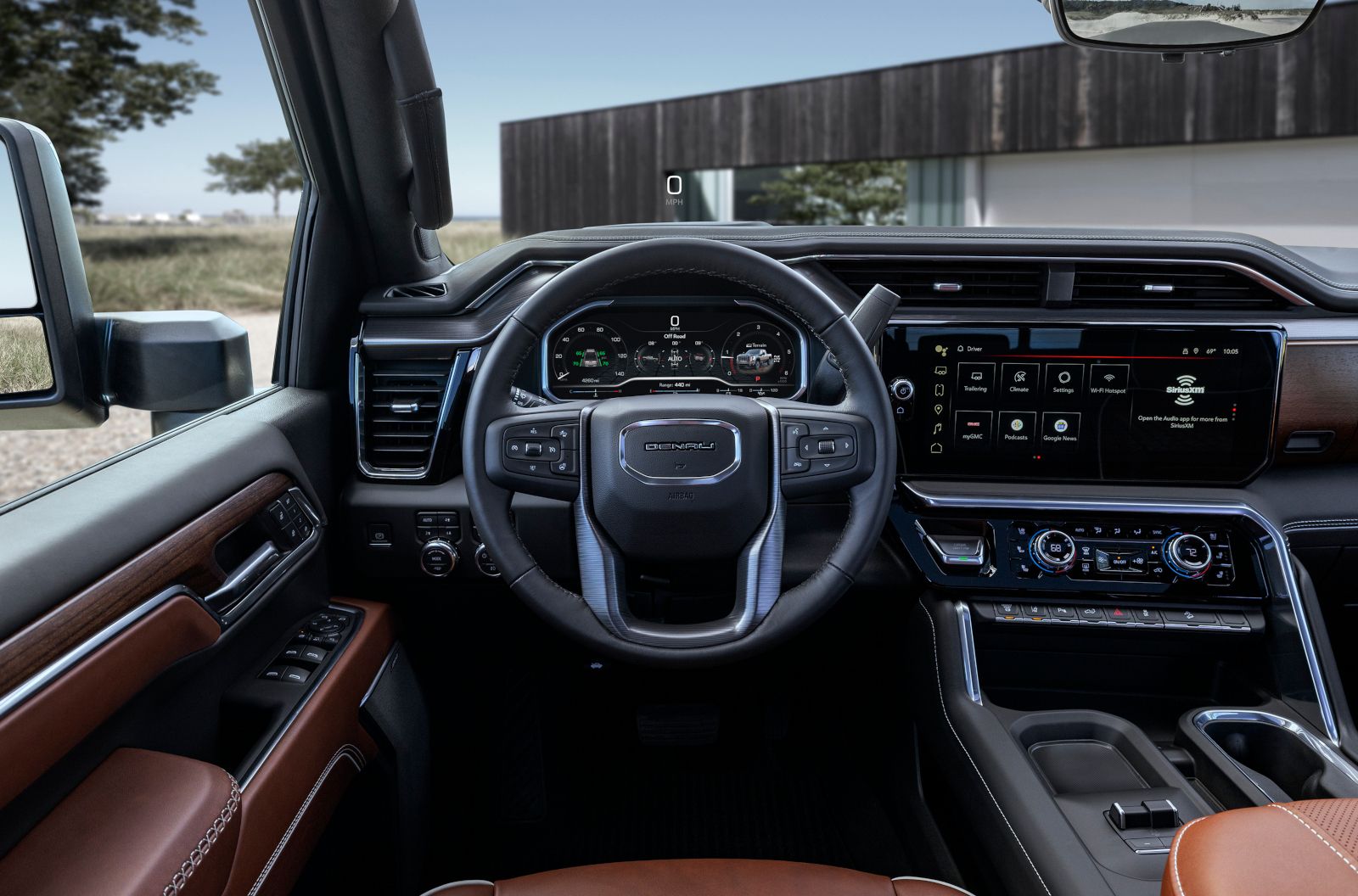

The 13.4-inch GMC Infotainment system with Google built-in provides seamless smartphone integration through wireless Apple CarPlay and Android Auto. The 12.3-inch Driver Information Centre delivers customizable vehicle data, while the available 15-inch Head-Up Display projects key information directly into the driver's sightline.
Trailering-focused technology includes up to 14 camera views with Transparent Trailer View capability, helping operators navigate tight job sites and position equipment trailers with confidence.
Standard across all Sierra HD configurations, GMC Pro Safety includes:
Available systems include Adaptive Cruise Control, HD Surround Vision, and expanded trailering safety features that enhance confidence when manoeuvring heavy loads.
The Sierra HD's capability foundation begins with its chassis architecture. Both 2500 HD and 3500 HD models utilize short-long-arm independent front suspension with torsion bars, providing a balance between ride quality and load-carrying capability.
Rear suspension differs between models: the base 2500 HD employs semi-elliptic, two-stage, multi-leaf springs, while the 2500 HD with Max Towing Package and all 3500 HD configurations upgrade to three-stage, multi-leaf springs for enhanced load stability.
Brake systems feature hydraulic power-assisted Hydroboost brake boosters with four-wheel disc brakes, ABS, and StabiliTrak electronic stability control. Rotor sizes measure 355 x 40 mm (14 x 1.6 in) front on all models, with rear rotors sizing 360 x 34 mm (14.1 x 1.3 in) on 2500 HD and 3500 HD SRW, and 355 x 40 mm (14 x 1.6 in) on 3500 HD DRW.
Fuel tank capacity varies by cab configuration and engine choice, directly impacting operational range between refuelling stops:
Gasoline Engine:
Diesel Engine:
The diesel engine's superior fuel efficiency under load, combined with larger tank capacity on most configurations, typically delivers greater operating range despite the smaller tank on Regular Cab models.
Choosing between 2500 HD and 3500 HD, gas and diesel, and various cab and bed combinations requires honest assessment of your heaviest anticipated loads and most demanding use cases.
Choose 2500 HD if you:
Choose 3500 HD SRW if you:

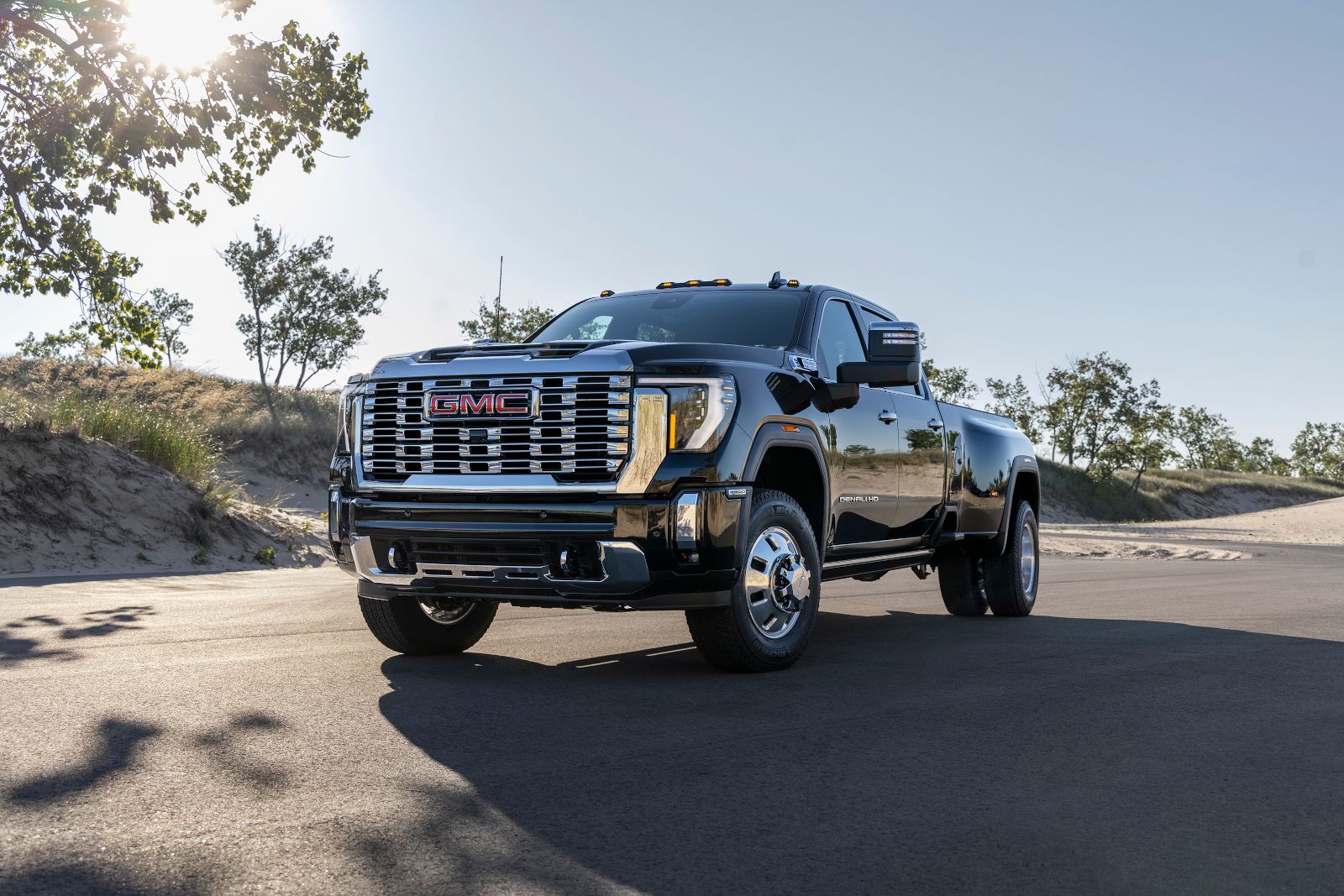

Choose 3500 HD DRW if you:
Choose Diesel if you:
Choose Gas if you:
Selecting the right heavy-duty truck configuration requires more than comparing specifications—it demands understanding how each model performs under your specific operating conditions. Our team at City Buick Chevrolet GMC in Toronto works with contractors and commercial operators throughout Ontario to match Sierra HD configurations to real-world job requirements.
Visit our dealership to explore the complete 2026 Sierra HD lineup, from work-focused Regular Cab configurations to off-road-capable AT4X models. Our sales specialists can help you navigate trim levels, engine choices, and towing packages to identify the configuration that delivers the capability you need without over-specifying features you won't use. Contact City Buick Chevrolet GMC today to schedule a consultation and discover which Sierra HD configuration best serves your operation.
